LSK Vertical Pin Tube Marine Boiler

Product Description:

This type of boiler is safe and reliable after long-term ocean-going operation, in line with the management provisions of the international Convention on Marine safety and environmental protection, meets the management requirements of unmanned engine room, and is praised by the shipowners. Over the years, thousands of this type of boiler have been shipped on board with good operation, reasonable design, safe and reliable use, high degree of automation, easy operation and long service life. The needle tube is located outside the water pipe of the boiler. There are many pin welding, expand the pipe outside (i.e. flue gas side) of the heating area, improve the heat transfer coefficient. Therefore, the LSK type needle tube boiler has the characteristics of small volume, light weight, high thermal efficiency (>83%), fast steam raising speed (generally 15-18 minutes), easy maintenance, especially the needle tube structure makes it more convenient to clean the soot, and does not pollute the machine bin environment.

Features:

1.LSK boiler is high-performance welded vertical needle tube boiler,

2.The flue gas side surface extended by pin tube is highly efficient to increase heat transfer, so that the boiler is achieved optimization of less weight and strength improved.

3.Inspection hole is on the top of the boiler (cleaning door), so it is easy to wash with water.

4.Thick flue gas tube is with long working life.

Advantage:

With small structure, light weight, high thermal efficiency, large steam production, it is suitable for tens of thousands tons of oil tanker and assembly requirements of all kinds of ships.

Compared to similar boilers, LSK boiler is compacted structure, small dimension, high automatic operation, fast steam raising, soot cleaning conveniently.

Product parameter:

The evaporation capacity of LSK vertical pin tube boiler is 0.5t/h-6.0t/h, and the data in the following table is for reference only.

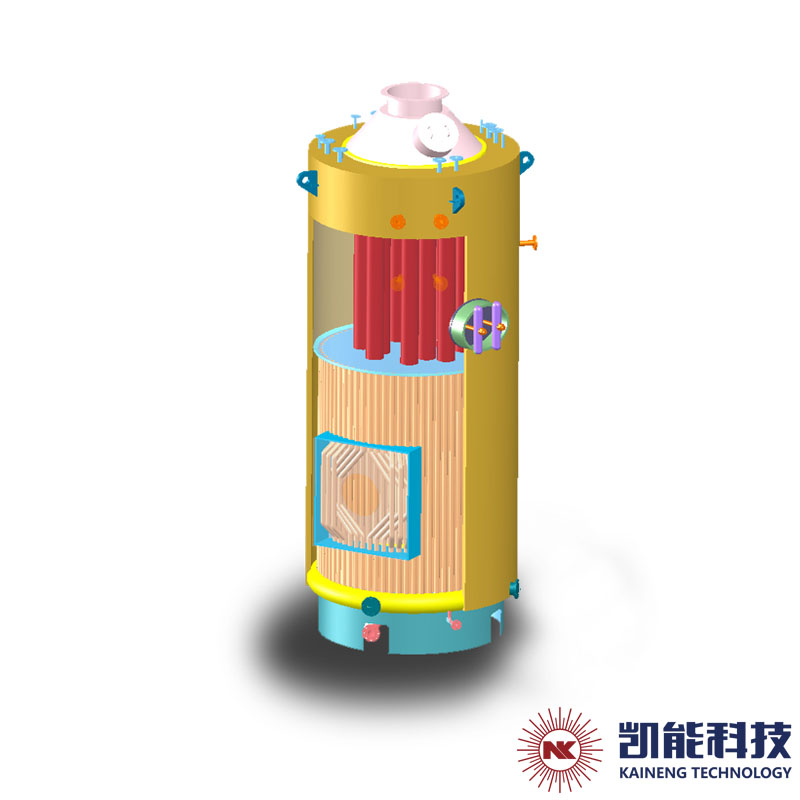

Overall Product Picture:

Presentation Of Detail Map:
