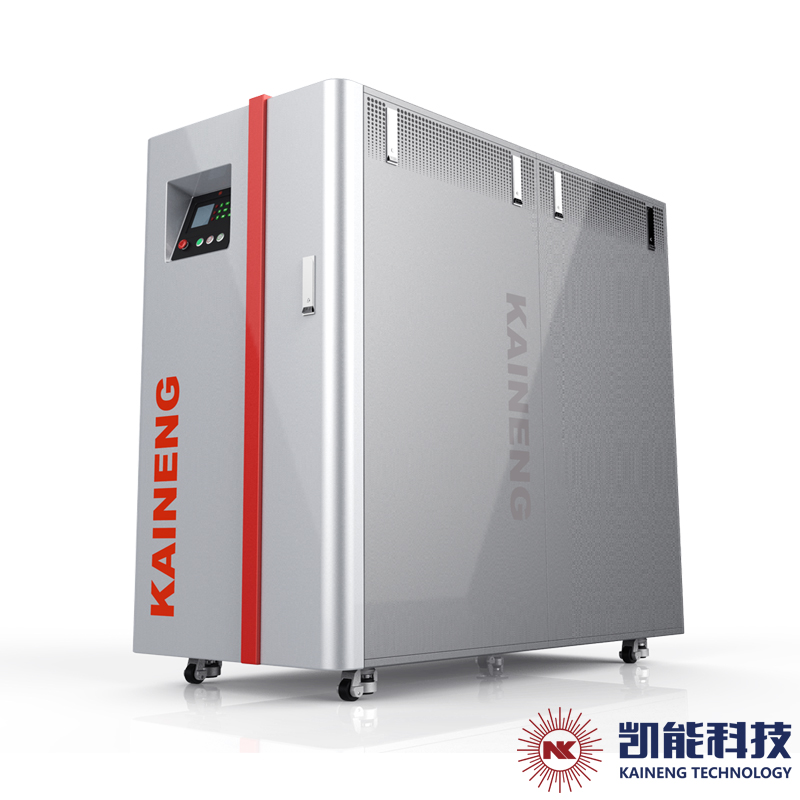

Kaineng fully premixed low-nitrogen condensing gas fired boiler adopts advanced European cast aluminum heat exchanger technology, Honeywell of the United States and Siemens of Germany low-nitrogen burner control technology, which is an efficient environmental protection and energy-saving product.
Inquire Now Next Product280kW Condensing Gas Fired Boiler
Kaineng fully premixed low-nitrogen condensing gas fired boiler adopts advanced European cast aluminum heat exchanger technology, Honeywell of the United States and Siemens of Germany low-nitrogen burner control technology, which is an efficient environmental protection and energy-saving product.
Description
The product can realize fully automatic intelligent control, small size, light weight, convenient installation and transportation, and reliable and safe use. The product is currently the preferred product to meet the requirements of high efficiency, energy saving and low nitrogen environmental protection at home and abroad.
Advantages
Thermal efficiency of the boiler: 106% (at best working condition);
Emission of nitrogen oxides of flue gas: lower than 30mg/Nm3,
the lowest emission temperature of flue gas can reach 50°C.
Specification
Item | Unit | Model/ Parameter |
KNLN-280 | ||
Rated power | kW | 280 |
Heat efficiency（Low calorific value）* | % | 106% |
Rated pressure | Mpa | Atmospheric pressure |
Max./min. gas inlet pressure | pa | 10000/3000 |
Rated outlet/inlet water temperature | ℃ | 85-60 |
Natural gas consumption (maximum)* | m³/h | 28.3 |
Rated power consumption | kWh | 0.5 |
Proportional adjustment range | % | 10-100 |
Flue gas temperature (lowest)* | ℃ | <50 |
Noise | dB(A) | ≤55 |
Exhaust pipe specifications | mm | 200 |
NOx * | mg/Nm³ | ≤30 |
Total weight of boiler | Kg | ～330 |
*：Standard conditions |
Application Area
It is highly adaptable and can be widely used in residential district, office buildings, schools, hospitals, hotels, shopping malls and all kinds of industrial buildings in winter heating and domestic hot water systems, with soft water, feed water, heat exchanger, electronic control systems, etc., the heat source is provided by the atmospheric pressure boiler plus secondary heat exchange.
