Fuel oil/exhaust gas combination boiler is used reasonably, and the ship sailing makes full use of diesel engine flue gas, saves fuel and reduces shipping cost. Fuel oil part and exhaust gas part are combined together, reasonable structure, energy saving and emission reduction, high automation, in line with the conditions of unmanned cabin management.
Fuel oil/exhaust gas combination boiler is used reasonably, and the ship sailing makes full use of diesel engine flue gas, saves fuel and reduces shipping cost. Fuel oil part and exhaust gas part are combined together, reasonable structure, energy saving and emission reduction, high automation, in line with the conditions of unmanned cabin management.
1、LZY type boiler is a welded high-performance vertical combination boiler, which is composed of fuel oil part and exhaust gas part.
2、The round furnace gall is the radiation heating surface of the boiler; the special threaded pipe is the convection heating surface of the fuel oil part.
3、The heating surface of the exhaust gas part is composed of flat light tube or threaded tube.
4、The surface with threads on the flue gas side increases the rotating flow of flue gas, thus improving the heat transfer coefficient.
5. There is an inspection hole (cleaning door) on the top of the boiler, so the boiler can be easily flushed with water.
6、The flue pipe is below the normal water level, so it avoids oxidative corrosion caused by moisture near the water level when the furnace pipe is cold and corrosion caused by changes in temperature and stress during operation.
Compared with single fuel boiler and single waste boiler, this oil/waste gas combination boiler has the advantages of less space, less labor and material, low cost and convenient management. The boiler is adapted to cargo ships and grocery ships and other ships with low steam consumption, safe, reliable, fuel saving, well received by users.
LZY type vertical threaded tube fuel oil, exhaust gas combination boiler, fuel oil part of the evaporation can be from 0.2t/h-5.0t/h, the exhaust gas part of the evaporation can be designed according to the exhaust gas discharge and the relevant parameters, to meet the needs of users.
Overall Product Picture:

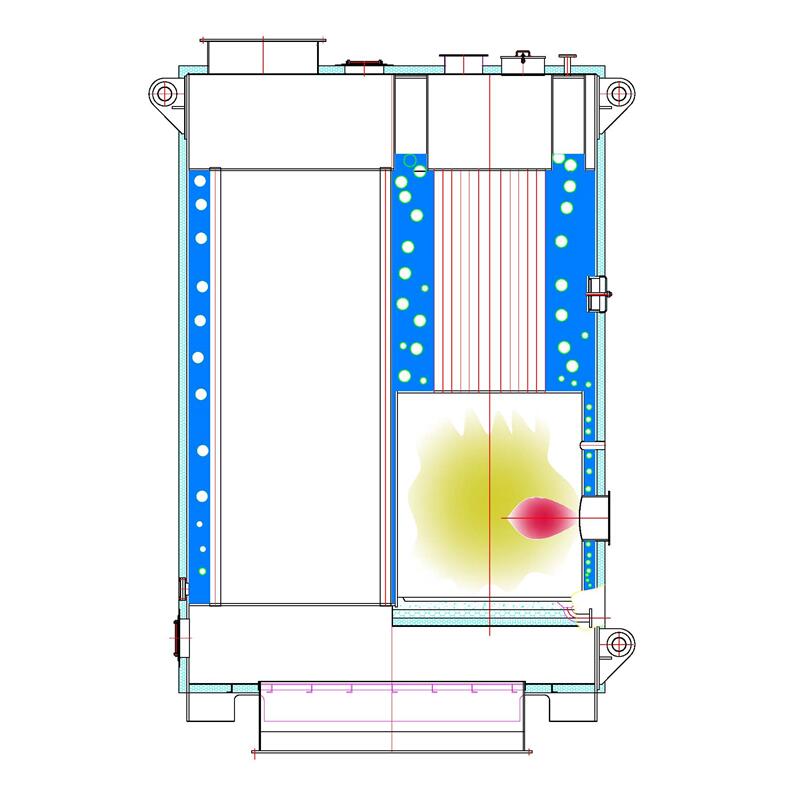

Presentation Of Detail Map:
